BAUER BG40 V (Full Spec)

Reference:

21131300BG40VX

AVAILABLE STOCK

EURO

EURO € 500.000

** Price shown is exluding taxes.

** Available For Hire

Basic Information

Category

Drilling Rigs

Country of Location

MALAYSIA

Year of Manufacture

2007

Machine Details

Hours of Use

​

Delivery Terms

EX YARD

Enquire Now

Please provide us your contact details. We will get in touch with you soon.

Thanks for submitting!

Technical Details

    One (1) Unit of Bauer BG 40 Serial no. 13XX, Y.o.m 2007 consist of:
    - Mast height 28.06m with 4m mast extension and feed cylinder system
    - Main winch 400 kN (Upgraded)
    - Control panel with display in operator?s cabin

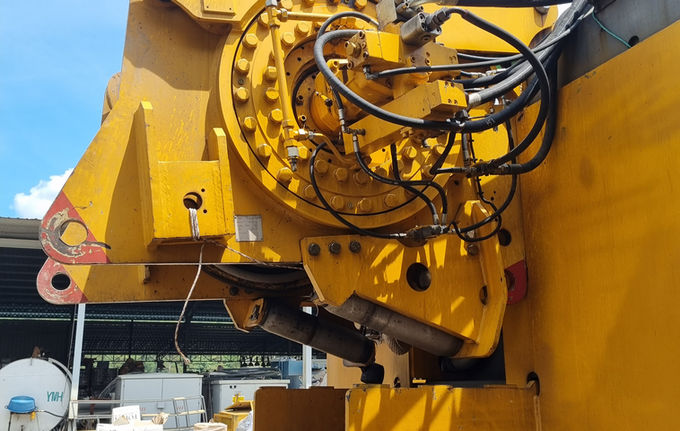

    - Rotary Drive KDK 390S with 390 kN torque
    - UW130B with extended 1000mm track width
    - Drill axis 1550mm base sledge
    - Base machine type BS 100, extendable undercarriage
    - Engine type CAT C15 with 433 KW (Overhauled in 2020)
    - Additional Mast Extension 2.5m
    - Additional counterweight 10.2 to
    - Original Bauer Kelly Bar BK 400/470/4/64M

Additional Info

    '- This BG40 is able to drill up to 3000mm Diameter pile
    - Drilling depth up to 82m using 4 section interlocking Kelly bar

    Machine major overhauled in 2020
    - Caterpillar C15 Engine has been overhauled by Caterpillar Malaysia (Current engine working hours only 780 Hours)
    - KDK Motors 2 nr, Winch Motor and Hydraulic Pumps completely serviced

    This unit is one of few full upgrade BG40 that comes with 40ton winch, additional 10to counterweight and 6.5m mast extension.

    Rig is in excellent working condition and low working hours.
